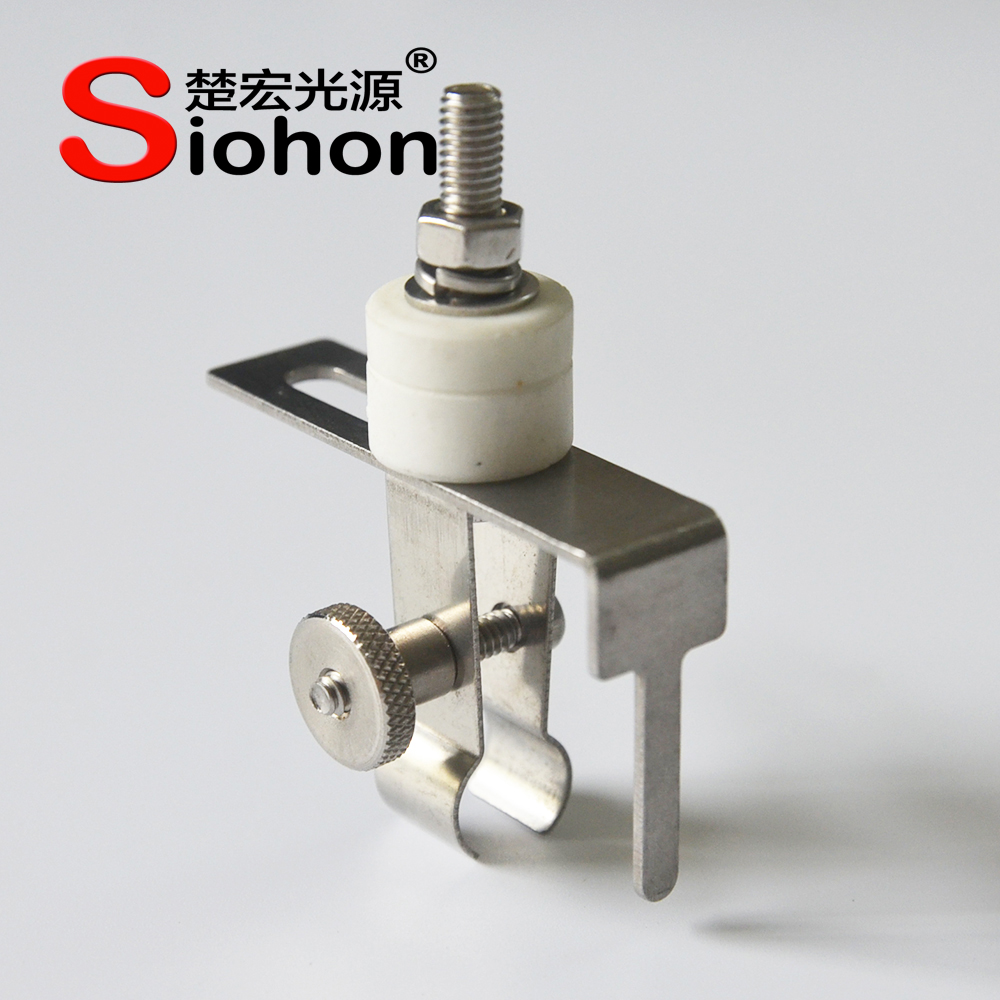

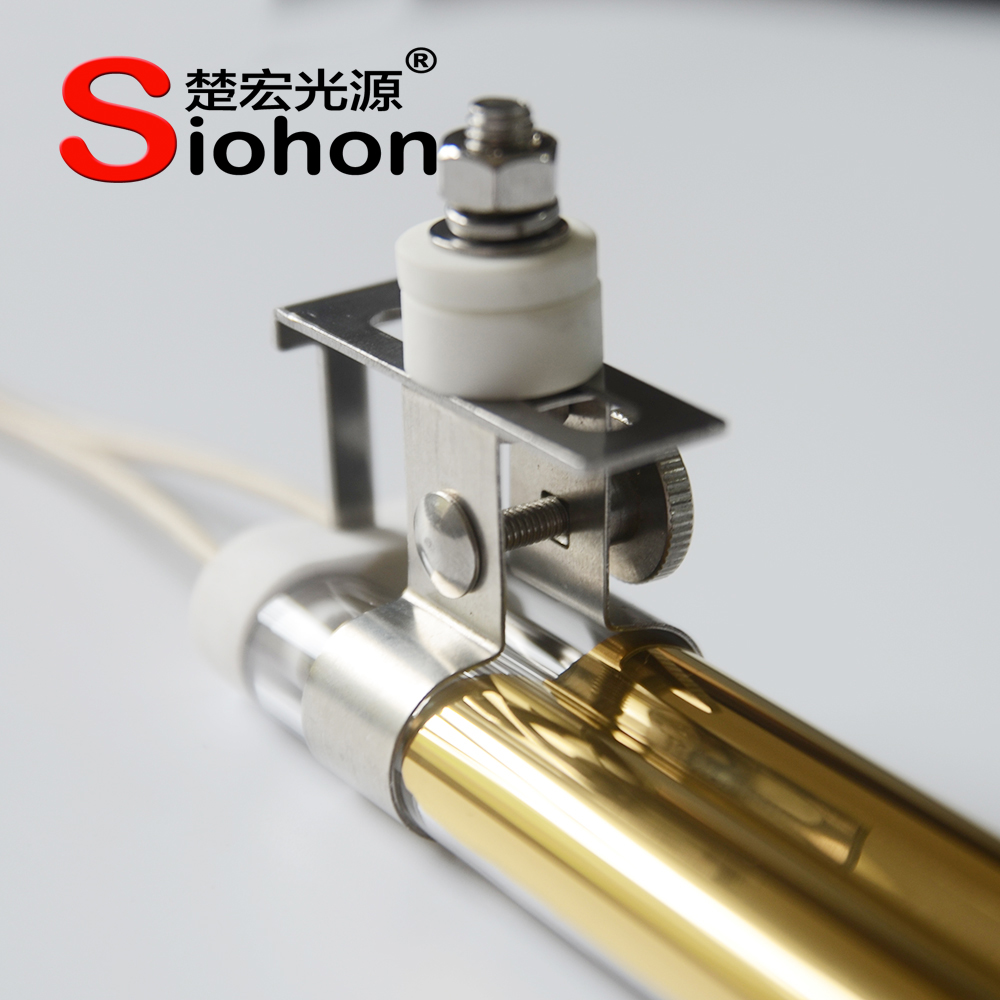

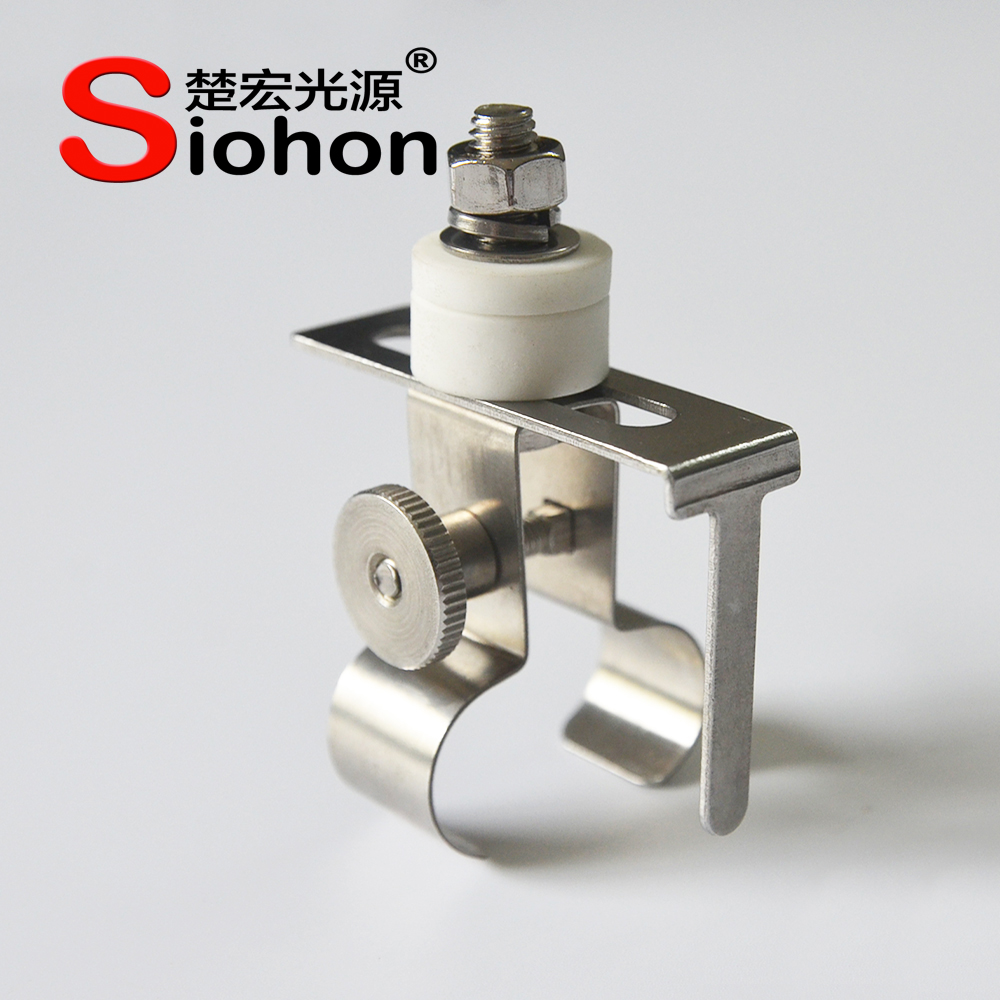

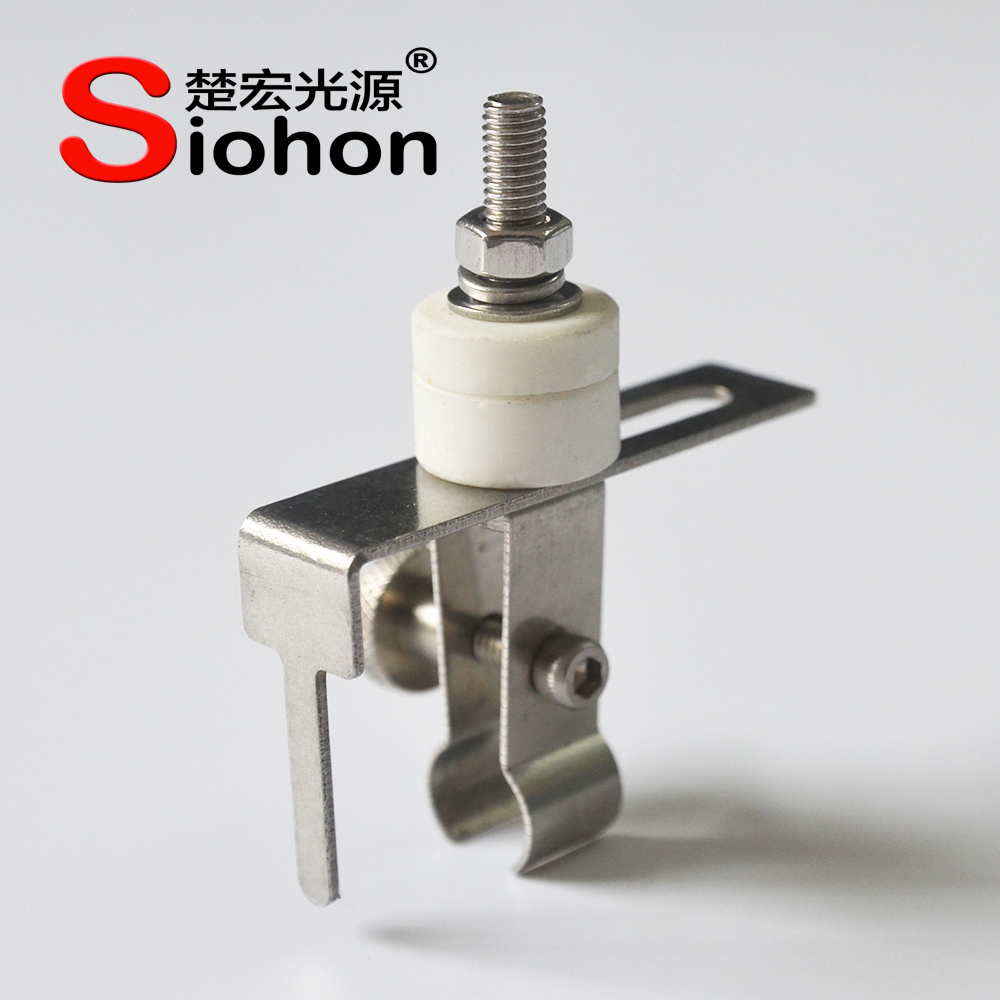

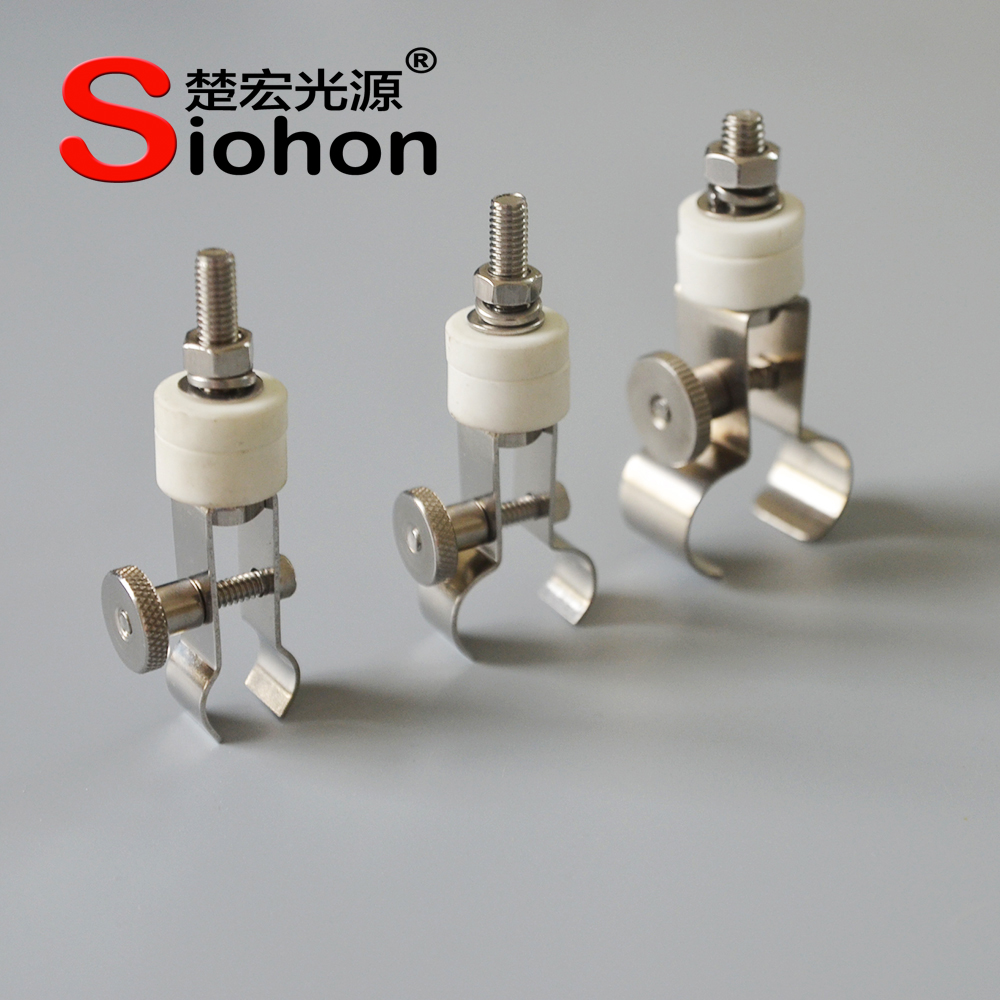

Infrared Lamp Holder Infrared Heating Emitter Clamp for Twin Twin Tube

Product Description

Product name IR lamp holder
Specifications 15*33mm
Metal Ceramic + aluminum
Color Ceramic white + Silver
Application Twin tube shortwave ir lamp
Specification

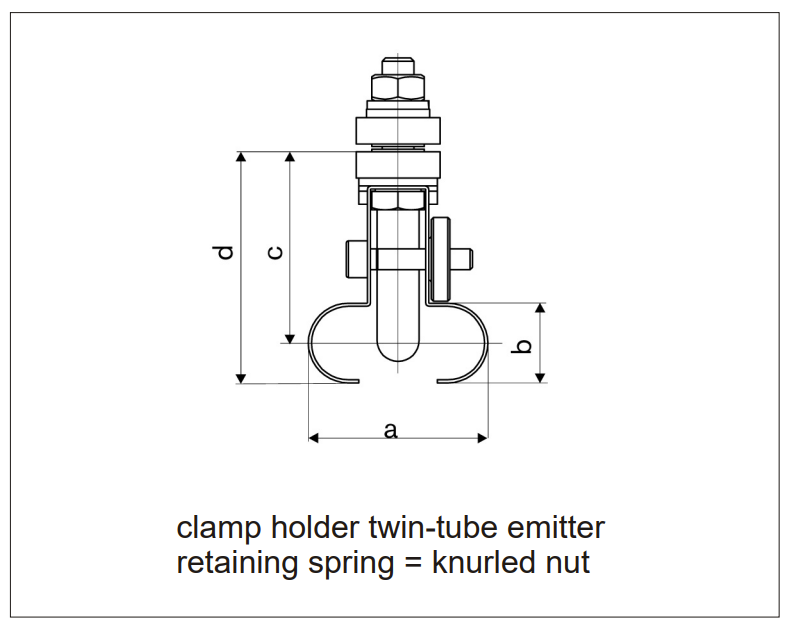

Specification diagram
Assembly
The infrared twin-tube emitter is suited for horizontal operation only. Special IR emitters for vertical installation positions are specially manufactured and marked as such.
To install our IR emitters, usually one mounting and one spring clamp, and if necessary, one or several central supports are to be used.
The IR twin-tube emitter must be secured in position of a stable support (steel support plate: >1.5 mm).
Installation Steps
  • Drill mounting holes with Ø 9.2 mm for clamp spring in the support (mounting plate) at distance L.
  • Screw the clamp spring in place with ceramic washers (1) on the mounting plate (4).
  • Press the IR emitter into position in the retaining spring clip. The emitter must point at all the surface to be heated.
  • The gold reflector should be pointing towards the support plate.
  • Tighten the fastening nuts (2) on the knurled nut (3).
  • Pulling the lead wire must not cause any tension on the press seal. Bending radius of lead wire: >30 mm.

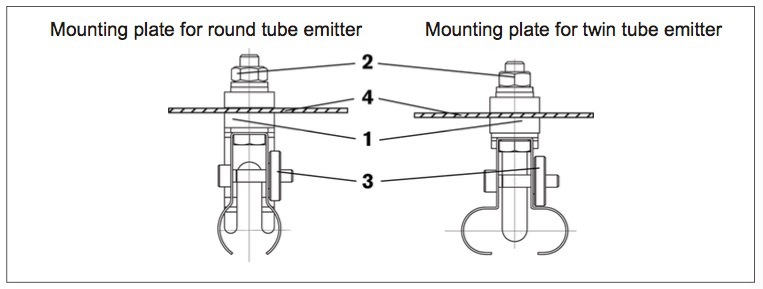

Assembly instruction diagram
Designation Part number Tubing format (mm) Dimensions in mm Fixing bolt
a b c d
Clamp holder 0975 9287 23x11 22 10 32.2 37.2 M5
Retaining spring 0975 9286
Central support 0975 9286
Clamp holder 0975 8026 33x15 33 15 37.2 44.7 M6
Clamp holder 0975 8018
Central support 0975 8018
Mounting Instructions

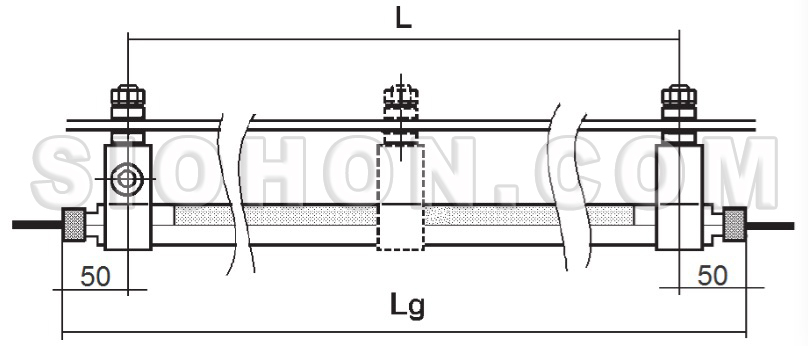

Mounting instructions diagram
Mounting hardware should be installed outside of the heated area.
⚠️ Important Warning
Do not install mounting hardware on the press seal or ceramic ends.
Use the corresponding clamp for mounting the holders and infrared emitters in the machine.
Mounting Dimensions
  • L = Overall length of emitter LG: 2x35 mm (two-sided connection)
  • L = Overall length of emitter LG: 35 mm -20 mm (one-sided connection)
  • If the overall emitter lengths >1000 mm, a central support (second clamp spring) is necessary.
Short Wave Twin Lamp Holders

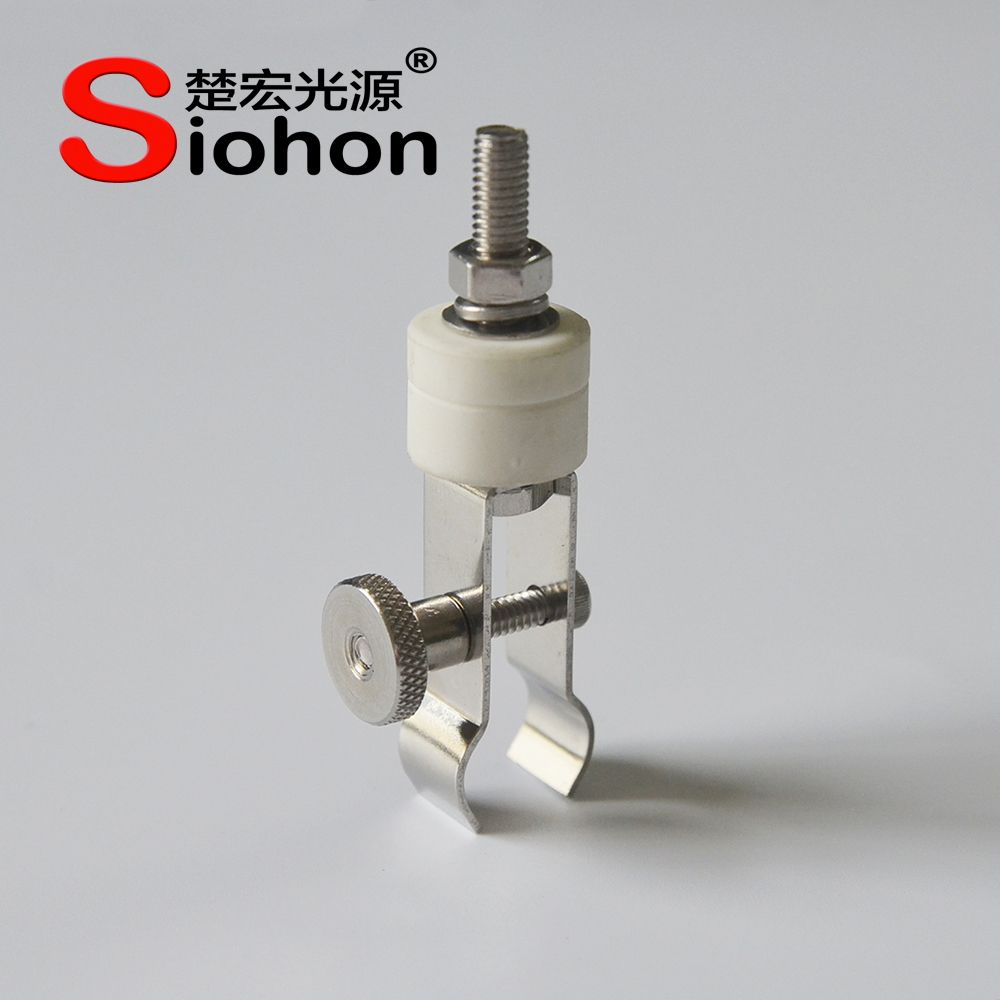

J1808 holder
J1808 (09759293)
For 8x18mm short wave twin lamp

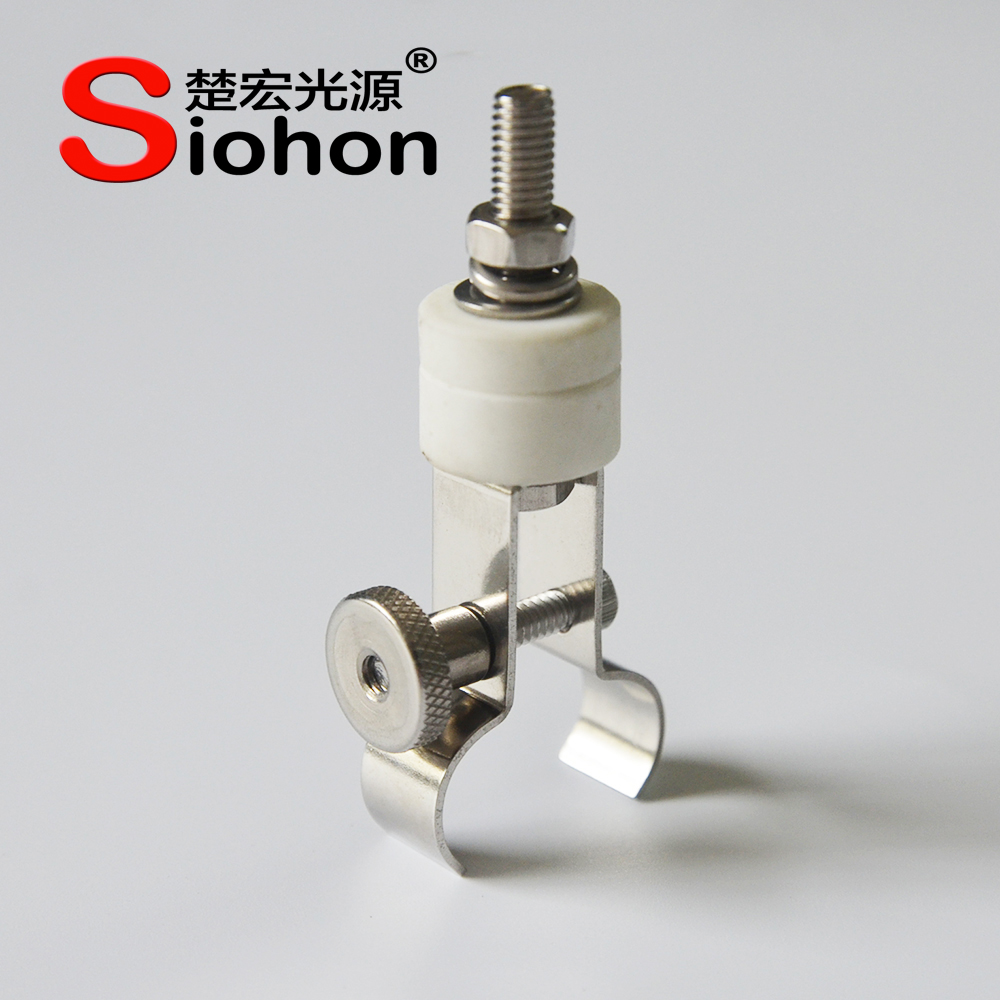

J2311 holder
J2311 (09759287)
For 23x11mm short wave twin lamp

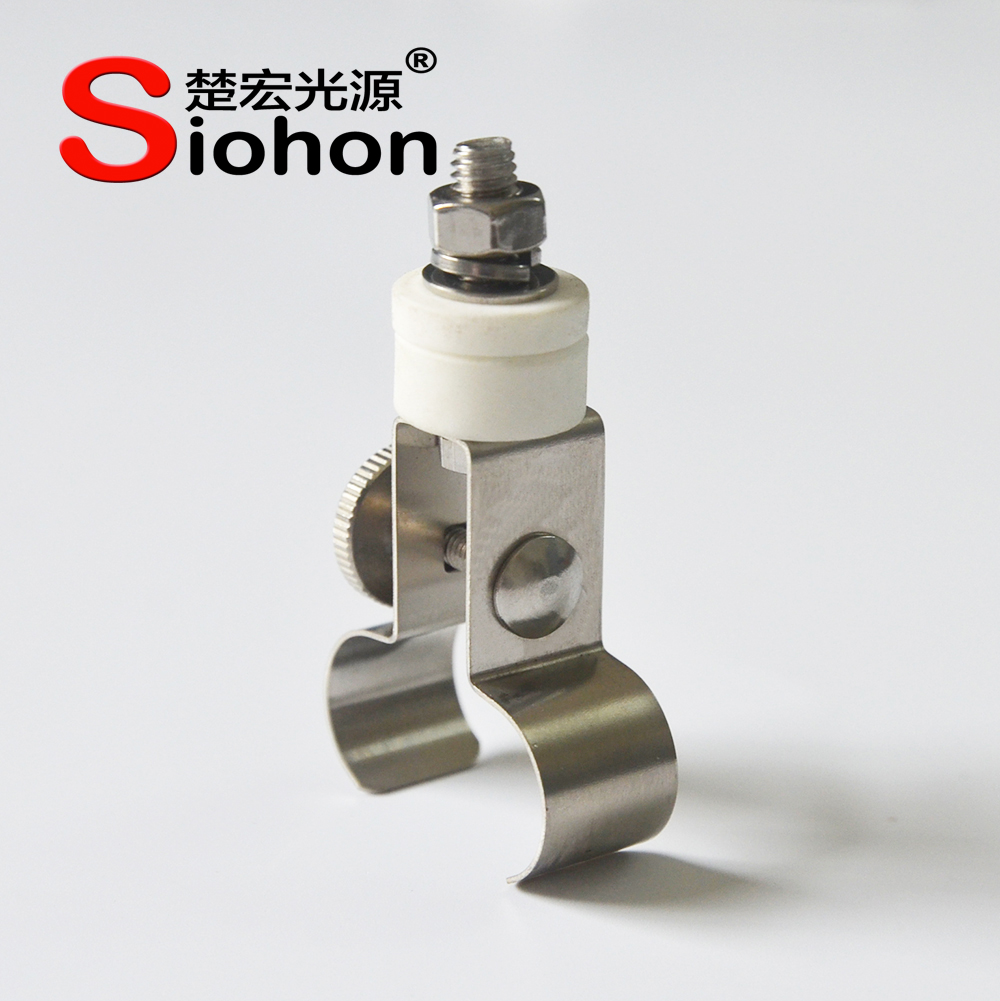

J3315 holder
J3315 (09759287)
For 33x15mm short wave twin lamp
Medium Wave Twin Lamp Holders
J1808L holder
J1808L (09758010)
For 8x18mm medium wave twin lamp

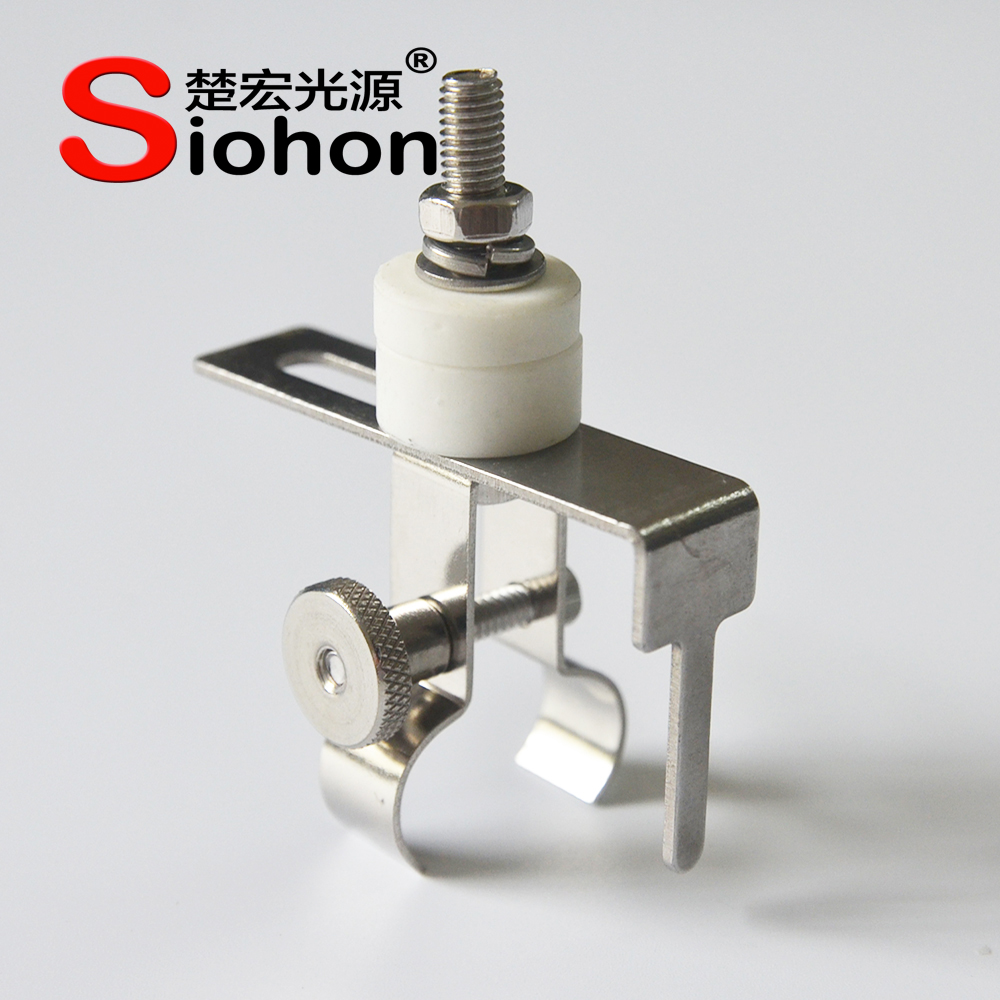

J2311L holder
J2311L (09758013)
For 23x11mm medium wave twin lamp
J3315L holder
J3315L (09758013)
For 33x15mm medium wave twin lamp
Specialized & Single Tube Holders

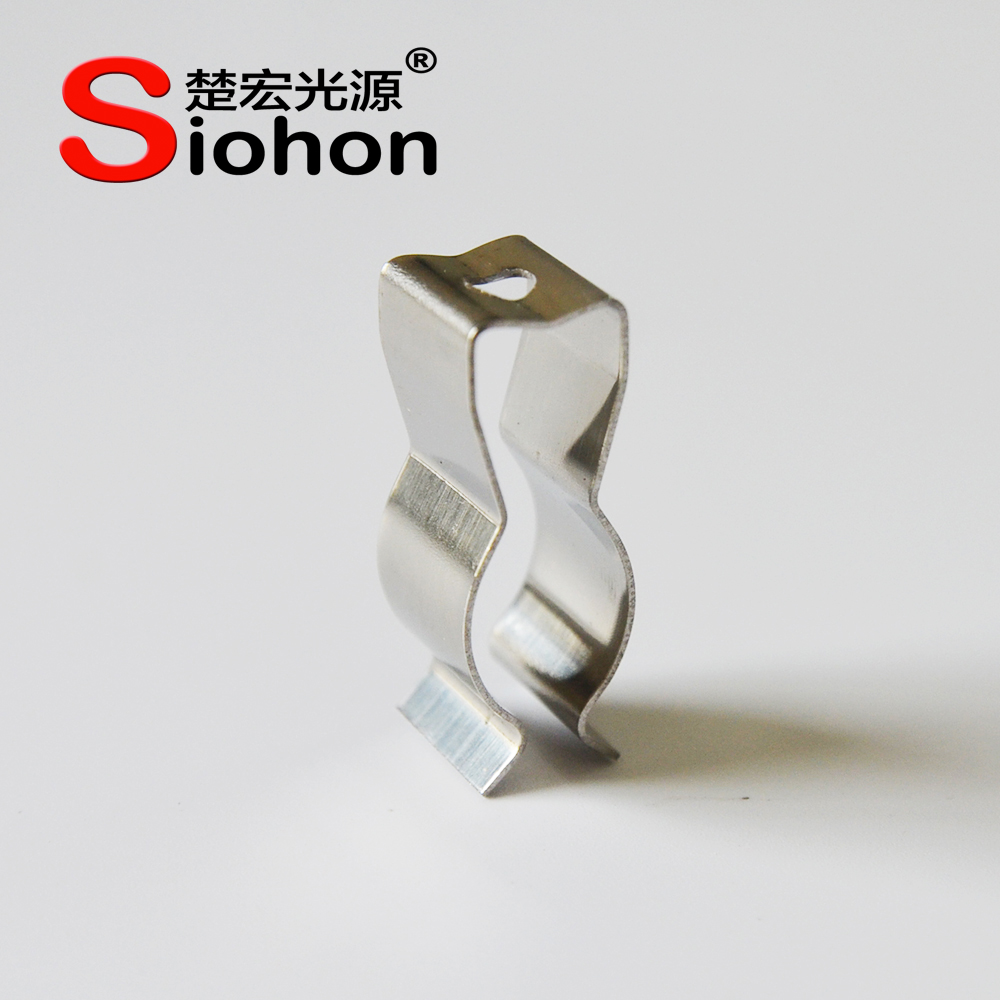

JR holder
JR Series
For single tube OD10-15mm

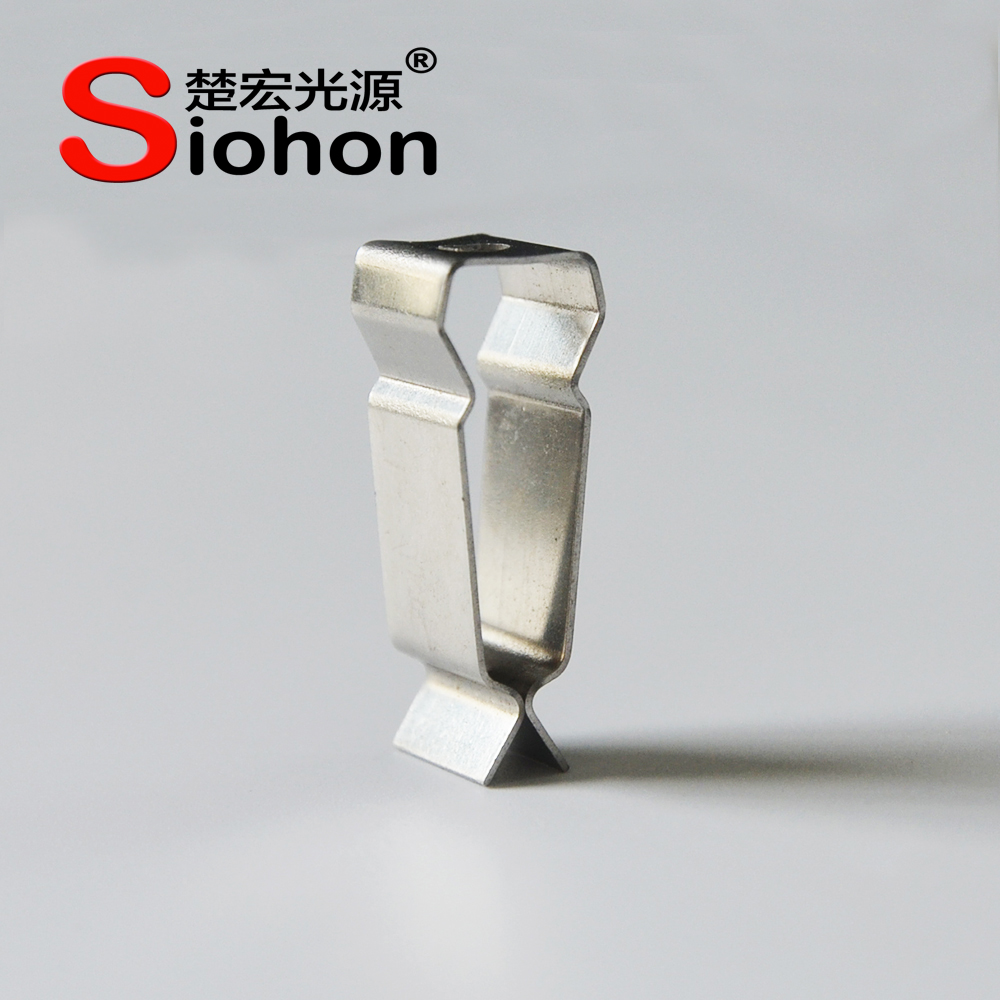

JS holder
JS Series
For square ceramic cap SK15
Gallery product view 1

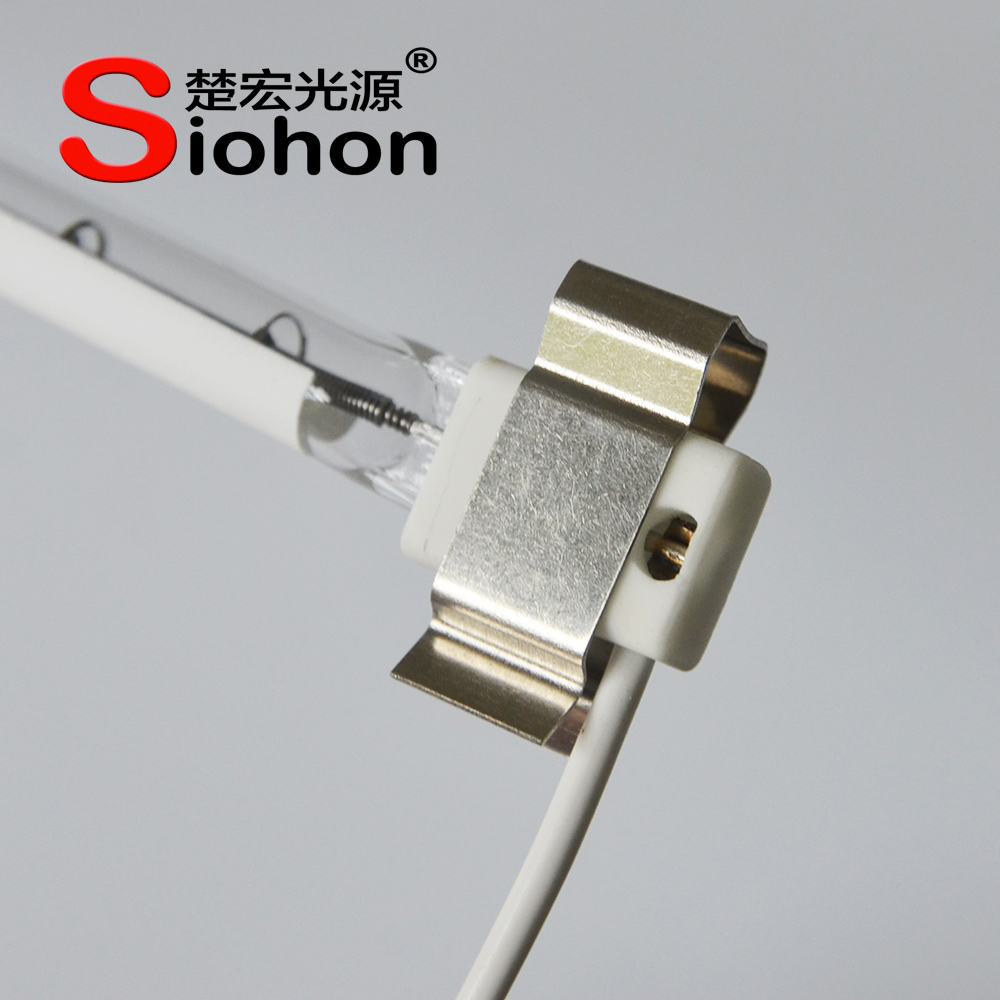

Gallery product view 2

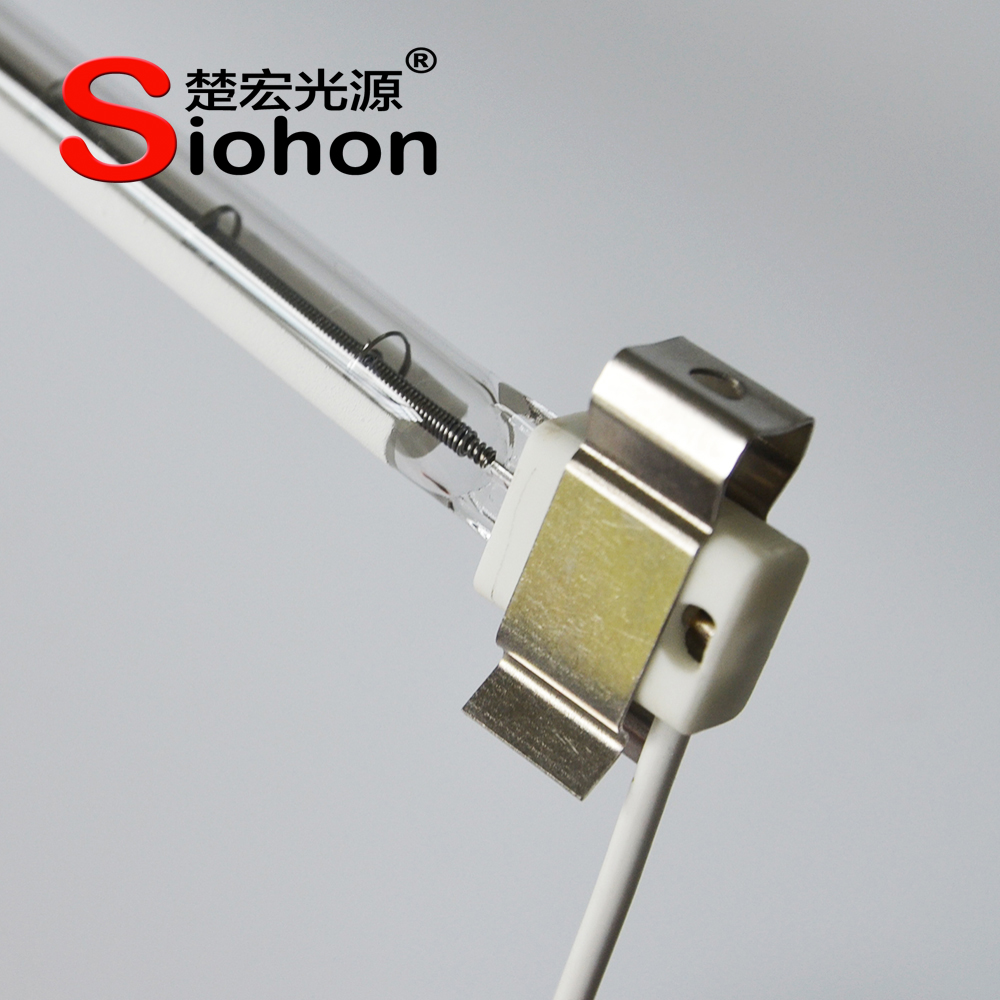

Gallery product view 3
Frequently Asked Questions
Can I have a sample order for infrared lamp?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
What about the lead time?
Sample needs 3-7 days, mass production time needs 1-3 weeks according to the order quantity.
Do you have any MOQ limit for infrared lamp order?
Low MOQ, 1pc for sample checking is available.
How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
How to proceed an order for infrared lamp?
Firstly, let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly, the customer confirms the samples and places a deposit for the formal order.
Fourthly, we arrange the production.
Do you offer guarantee for the products?
Yes, we offer 5000 hours warranty for shortwave infrared lamps, and 20000 hours warranty for medium wave infrared lamps.
