Quack Lamp
1 / 5

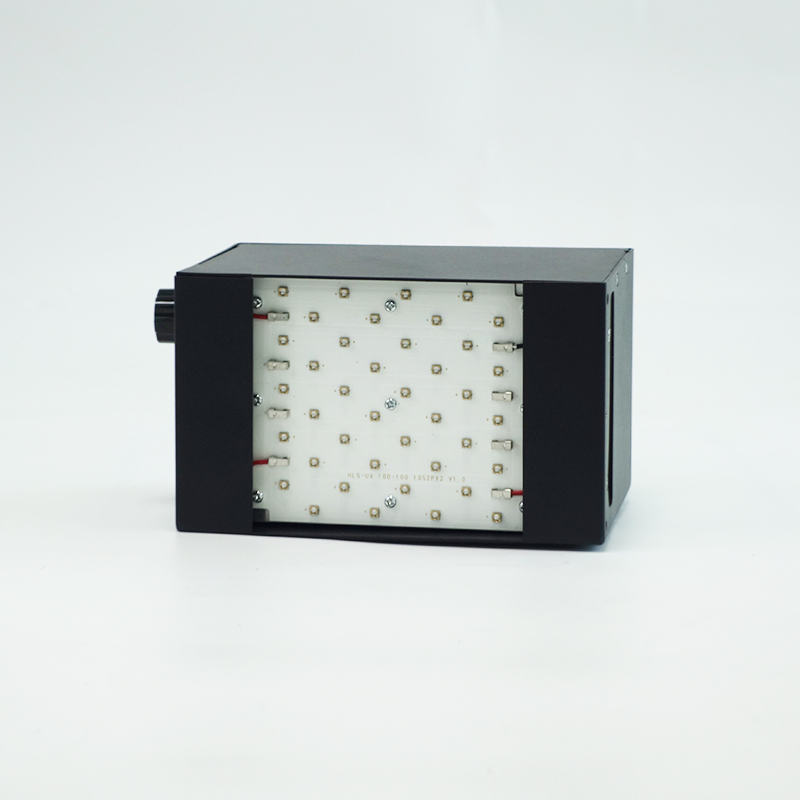

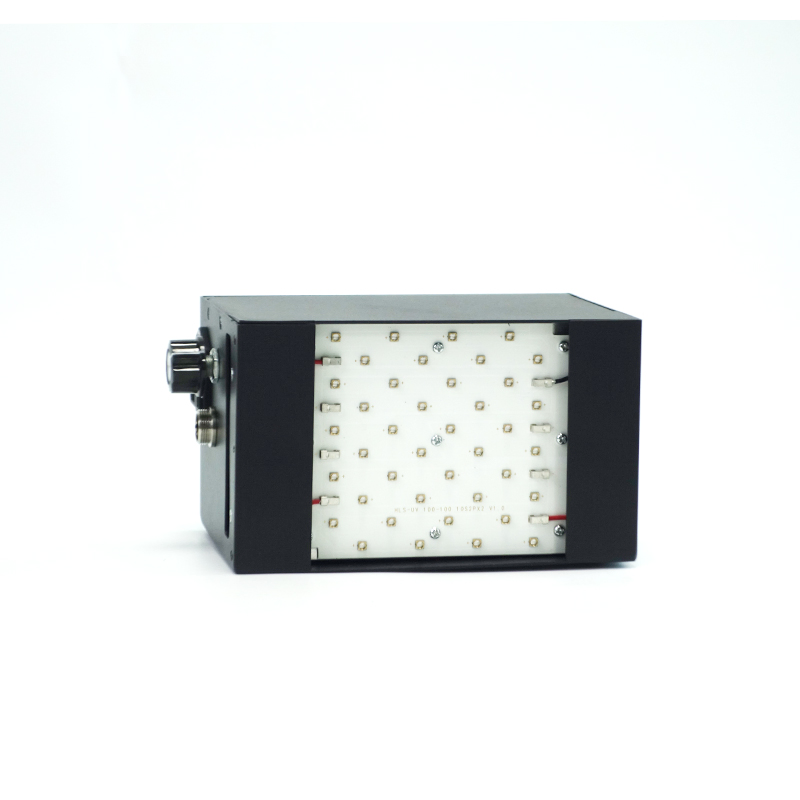

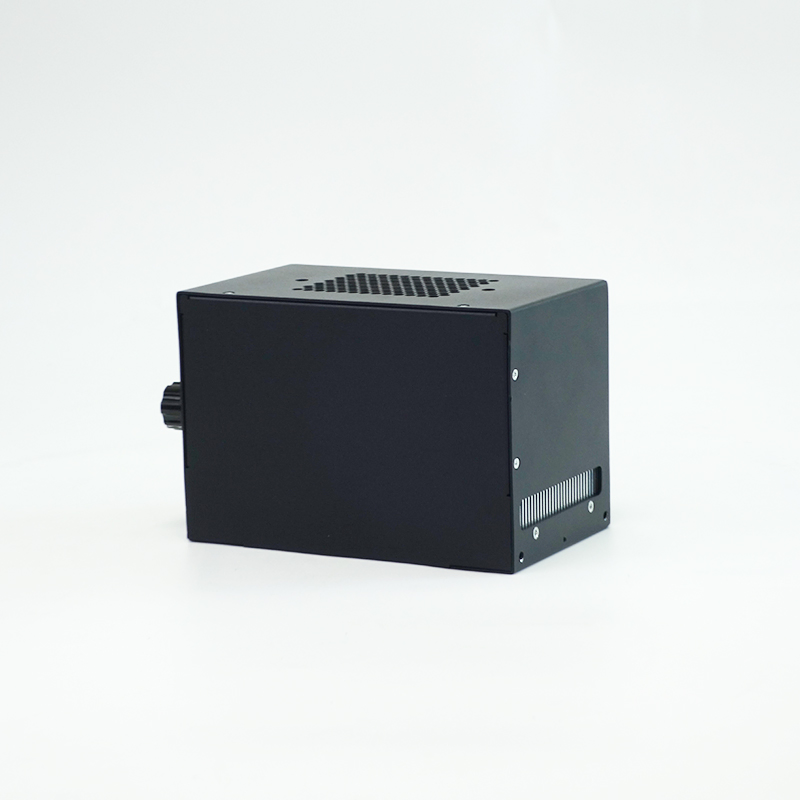

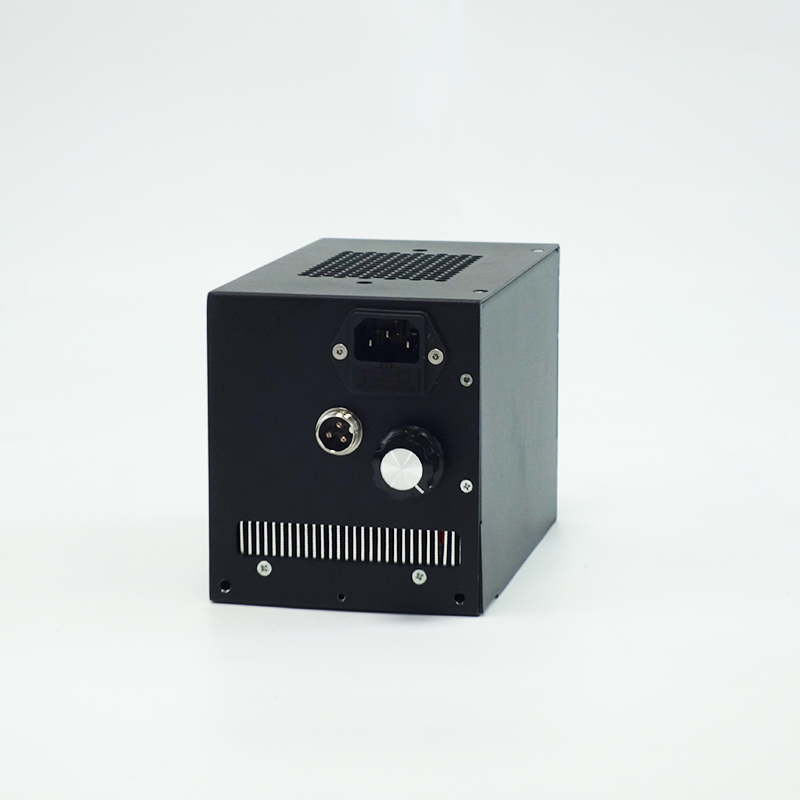

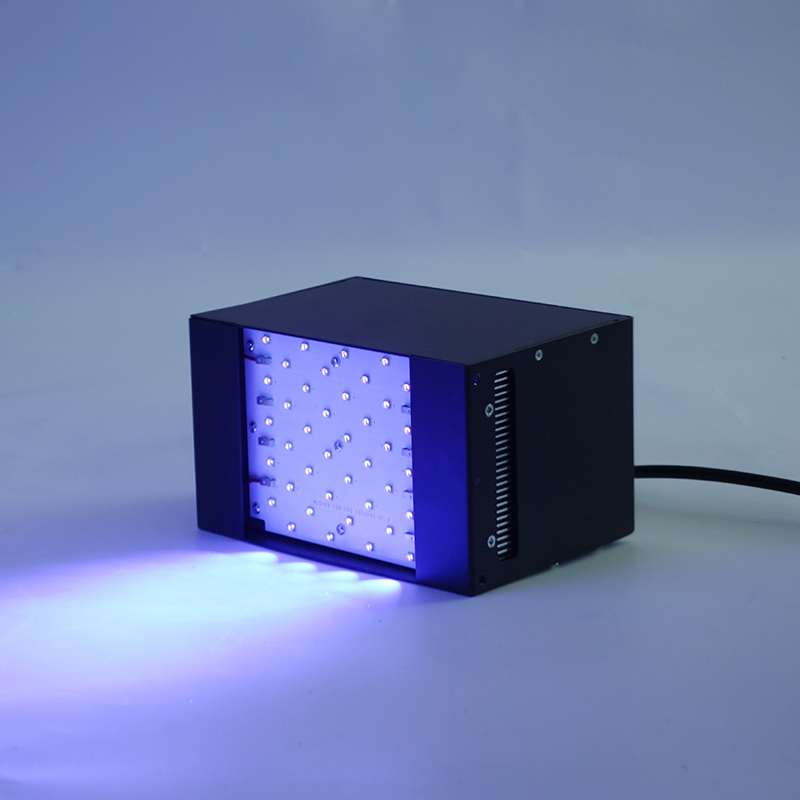

This professional-grade system is designed for screen printing machines and high-speed industrial applications, featuring versatile wavelengths of 365nm and 395nm.
| Parameter | Detail |
|---|---|
| Voltage | 240V AC |
| Material | High-durability Sheet Metal |
| Heat Dissipation | Active Fan Cooling |
| Control Method | Touch / Pedal / RS232 Port / PLC |
| Power Adjustment | 10% ~ 100% mW |
| Irradiation Modes | Manual, Automatic (0.1-999.9S), Ladder, Pulse |
| Working Temperature | 0-45℃ |
| Component | Specification |
|---|---|
| LED Type | Premium Imported Chips |
| Lifespan | 20,000 Hrs @ 80% Power |
| Cooling | Integrated Air Cooling |
| Wavelengths | 365nm / 385nm / 395nm / 405nm (±5) |
| Luminous Size | 100x100mm |
| Peak Intensity | 1W/cm² @ 365nm; 1.5W/cm² @ 385/395/405nm |

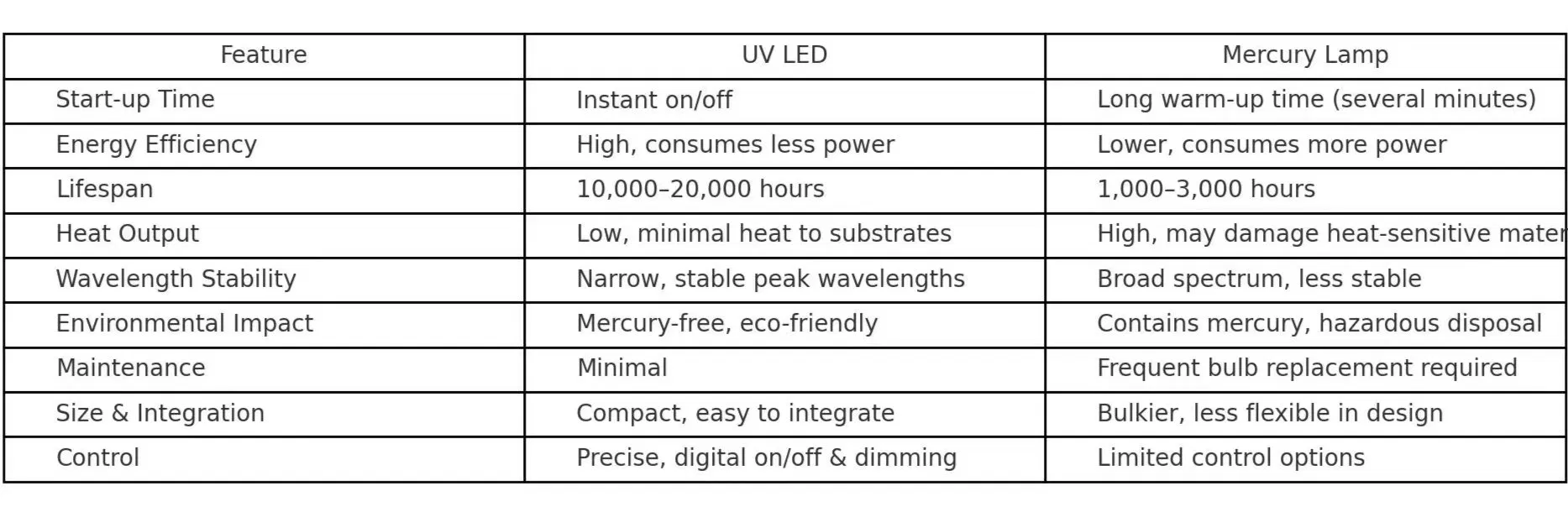

UV LED systems provide faster response, higher energy efficiency, and a longer lifespan compared to traditional mercury lamps.

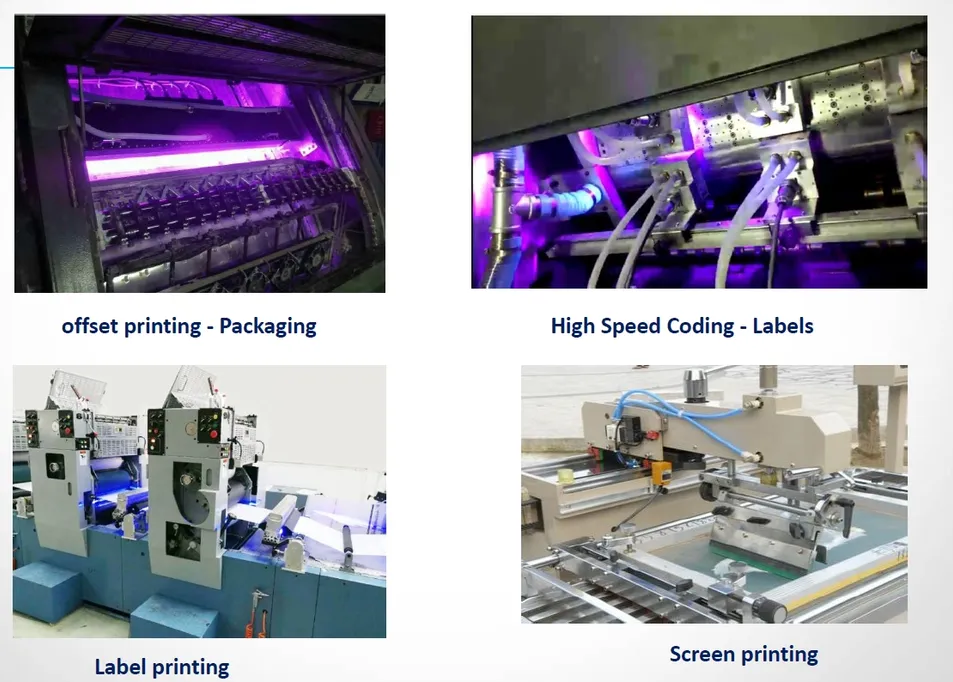

1. UV Adhesive: Optical communications, microelectronics, medical consumables, camera modules.
2. UV Coating: PCBA, chip packaging, automotive precision machining.
3. UV Ink: Screen printing, 3D printing, flexo, and digital printing.
Main Systems:
- UV-LED Spot/Line/Area Curing
- UV-LED Oven & Conveyor Systems
- UV-LED Intensity Measurement
Additional Equipment:
- UV Radiometers
- Custom Line Light Sources
- Industrial UV Conveyors
